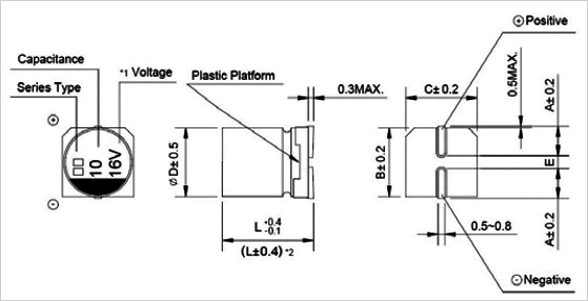

jb Capacitors manufactures SMD Aluminum Electrolytic Capacitor. JCC 2000H at 85°C Chip Aluminum Electrolytic Capacitor is one of the most common series, we sell quite good prices, high quality and with short lead time. Following are 85°C SMD Aluminum Electrolytic Capacitor features, specifications and drawing.
Email sales@bec.co.uk or call +44 (0) 1844 275824 for pricing and more information
| Operating Temperature | -40°C~ +85°C | |
|---|---|---|
| Voltage Range | 6.3V ~ 50V.DC | |
| Capacitance Range | 0.1 ~ 220μF | |
| Capacitance Tolerance | ±20% at 120Hz, 20°C | |
| Leakage Current | Leakage current≤0.002CV or 0.5μA, whichever is greater(after 2 minutes’ application of rated voltage) |
