PSR – 2000H at 105°C Low ESR Radial Polymer Aluminum Solid Electrolytic Capacitors

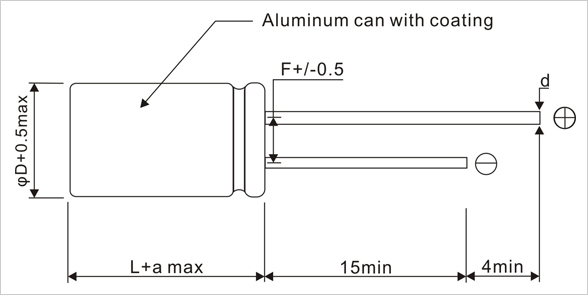

jb Capacitors manufactures and markets Radial Conductive Polymer Aluminum Solid Electrolytic Capacitors with Large permissible ripple current and Low ESR. Following are PSR – 2000H at 105°C, Low ESR Radial Conductive Polymer Aluminum Solid Electrolytic Capacitors features, applications, specifications and dimensions. We supply high quality Radial Conductive Polymer Aluminum Solid Electrolytic Capacitors to you.

Email sales@bec.co.uk or call +44 (0) 845 4900 40 for pricing and more information

Description

PSR – 2000H at 105°C Low ESR Radial Polymer Aluminum Solid Electrolytic Capacitors Features

  • Low ESR Series. Load life of 2000 hours at 105°C.
  • Large permissible ripple current
  • Low ESR at high frequency range
  • Comply with the RoHS directive.
Operating Temperature -55°C~ +105°C
Voltage Range 6.3V ~16V.DC
Capacitance Range 180 ~ 1500μF
Capacitance Tolerance ±20% at 120Hz, 20°C
Leakage Current(+20℃, max) ≤0.2CV (μA, after 2 minutes)
