JYA – Y1(CD 400VAC) and Y2(CE 300VAC) Safety Standard Recognized Capacitors

jb Capacitors Company is specialized in producing the Class Y Safety Standard Capacitors. The Y class safety-certified capacitors, used in line-to-ground (line bypass) applications, have voltages from 400VAC (Y1 series)/300VAC (Y2 series). Major features of these non-polar capacitors include capacitance range generally from 10pF to 10000pF; from 7.5mm to10mm lead spacing, high reliability, and kinked or straight lead configurations.

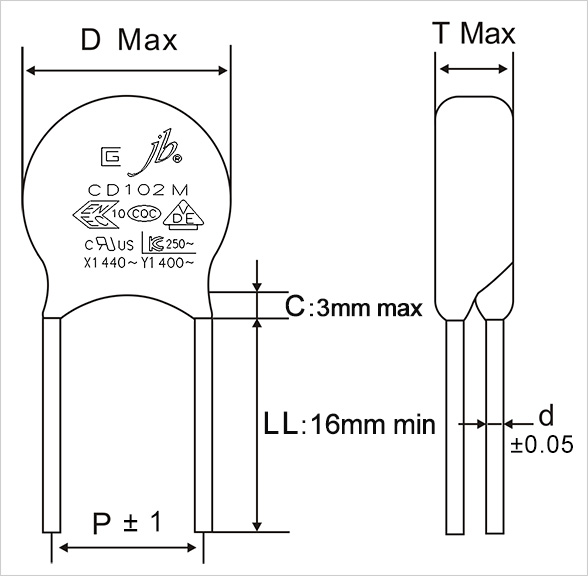

jb Class Y Safety Capacitors ideal for across the line applications, compact size, cost effective product, safety standards recognized. Following are JYA – Y1 and Y2 Safety Standard Recognized Capacitors features, applications, specifications and dimensions. We supply high quality Class Y Safety Capacitors to you.

Spec Sheet

Email sales@bec.co.uk or call +44 (0) 1844 275824 for pricing and more information

SKU: JYA Category:

Description

JYA – Y1(CD 400VAC) and Y2(CE 300VAC) Safety Standard Recognized Capacitors Features

  • Ideal for across the line applications
  • Ideal for across the line applications
  • Compact size
  • Cost effective product
  • Safety standards recognized
Operating Temperature -25°C~ +85°C
Capacitance Range 10pF TO 10000pF
Capacitance Tolerance ±10%, ±20%, +80-20%
Rated Voltage AC 125V, 250V, 300V, 400V
Temperature Cofficient 2B(Y5P)±10%、2E(Y5U)+22%~-56%、2F(Y5V)+22%~-82%
Dissipation Factor (tan δ) 2B: 2.5% max. at 25℃ and 1 KHz, 1±0.2 Vrms.
Insulation Resistance at 20℃ 2E/2F: 2.5% max. at 25℃ and 1 KHz, 1±0.2 Vrms.
Dielectric Strength 10000MΩat 500VDC for 1 minute.
1500V AC for 60 seconds. (250V AC)
4000V AC for 60 seconds. (400V AC)
