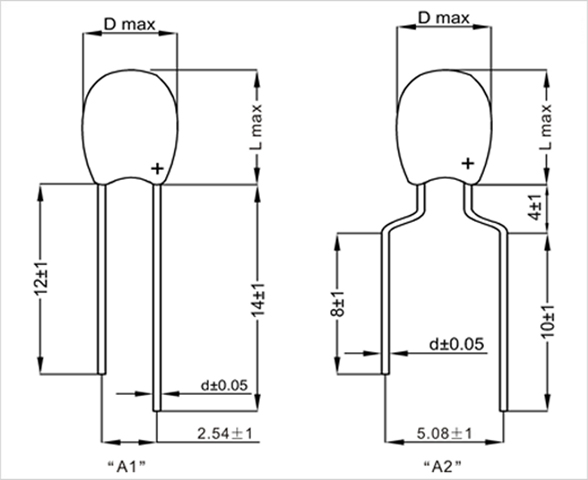

jb Capacitors JTA Leaded Dipped Solid Tantalum Capacitor with Resin Sealed，Resin Dipped, Lead solid Tantalum Capacitors are a subtype of electrolytic capacitors. Epoxy-Coated, Radial-lead, Polarized. Those Those totally comply with the limits as set by RoHS Directive (EU) 2015/863 amending Annex II to Directive 2011/65/EU. They are made of tantalum metal which acts as an anode, covered by a layer of oxide which acts as the dielectric, surrounded by a conductive cathode.Following are JTA Leaded Dipped Solid Tantalum Capacitor features, applications, datasheet, specifications and drawing.
Email sales@bec.co.uk or call +44 (0) 1844 275824 for pricing and more information
| Operating Temperature | -55°C to +125°C | |
|---|---|---|
| Capacitance Range | 0.47μF ~ 680μF | |
| Capacitance Tolerance | ±20%, ±10%,5% (for special order) | |
| Rated Voltage | 6.3V – 50V.DC |
