JSX Series – JSX02G105J000000B Superior Metallized Polypropylene Film Capacitors – Axial

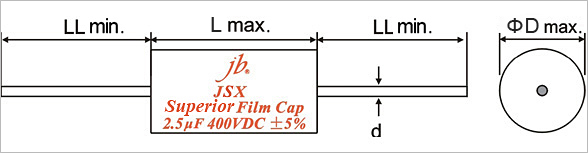

jb Capacitors manufactures Superior Metallized Polypropylene Film Capacitors – Axial type. This high quality Superior Audio film capacitor provide perfect sound quality. jb Capacitors can sell low MOQ and competitive price. Following are Superior Metallized Polypropylene Film Capacitors features, specifications and drawing.

Email sales@bec.co.uk or call +44 (0) 1844 275824 for pricing and more information

SKU: JSX02G105J000000B Categories: ,

Description

JSX – Superior Metallized Polypropylene Film Capacitors – Axial Features

  • Quick transient design
  • High Precise Capacitance ±3%, ±5%
  • Very Low Dielectric absorption factor
  • Very Low Dissipation factor
  • Very Low ESR
  • Very Low Inductance
  • Excellent handling of high current audio pulses
Passive flammability GB10191-88 IEC384-16
Operating temperature -55℃~+85℃
Capacitance range 0.1~100uF
Capacitance tolerance ±3%(E)、±5%(J) 1KHz
Rated voltage 250V、400V、630V.DC
Withstand voltage 1.6VR 5S
Dissipation factor ≤0.0010 1KHz
Insulate the electric resistance CR≤0.33μF, I.R≥15,000MΩ
CR>0.33μF, I.R≥5,000S
Leads Diameter 0.8、1.0 Tinned Copper Wire
