JSW – Motor Starting Capacitors

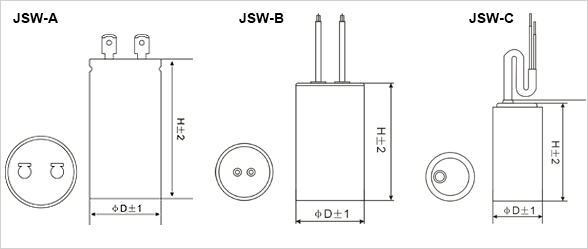

jb Capacitors manufactures and markets Motor Starting, which widely used for the compressor starter of a refrigerator and air-conditioner and for the water pumps. Following are the Motor Starting Capacitor features, specifications and dimensions.

Email sales@bec.co.uk or call +44 (0) 845 4900 40 for pricing and more information

Description

JSW – Motor Starting Capacitor Features

  • Small volume, large capacitance
  • Low spoilage, stable capability
  • The specific type of capacitors with high electrical characteristics are widely used in single phase A.C. motors with rated voltage of 110V-330V and the frequency of 50Hz-60Hz to Get high rotary torque at low starting current, and also the motor at a lower starting current under high torque.
Items Performance Characteristics
Operating Temperature Range (°C) -40°C~+65°C
Rated Voltage 110~330V,AC
Capacitance Tolerance -10%~+20%
Capacitance 50-1500μF
Loss Tangent 0~+20%
Withstand Voltage Between Terminals 1.2 times working voltage, no break down within 2s
Withstand Voltage Between Terminal And Case 2000VAC, no break down with 60s
