JSU – Lug Aluminum Electrolytic Capacitor, for Photo Flash

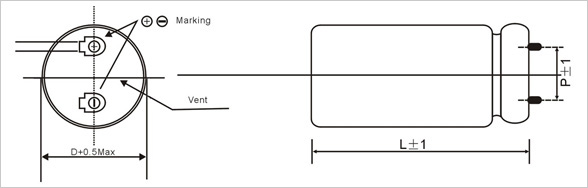

jb Capacitors manufactures and markets Lug Aluminum Electrolytic Capacitor. JSU Photo Flash Aluminum Electrolytic Capacitor have high Stability. We sell competitive price. Following are Lug Type, Photo Flash Aluminum Electrolytic Capacitor features, specifications and dimensions.

Spec Sheet

Email sales@bec.co.uk or call +44 (0) 1844 275824 for pricing and more information

SKU: JSU Categories: ,

Description

JSU – Photo Flash, Lug Aluminum Electrolytic Capacitor Features

  • For Photo Flash
  • High Stability
  • Compact and light weight
Items Performance Characteristics
Operating Temperature Range (°C) -20°C~+55°C
Rated Voltage 330WV.DC 360WV.DC
Voltage Proof 350SV.DC 390SV.DC
Capacitance Tolerance (25°C, 120Hz) -10%~+20%
Dissipation Factor (20°C, 120Hz) Capacitance : 150~600μF Less than 0.1
Capacitance : 700~1500μF Less than 0.15
Leakage Current I=1xC (20°C, after 5 minutes) Max
I: Leakage Current (μA) C: Rated Capacitance (μF)
