JRW – 2000H at 105°C, Radial Aluminum Electrolytic Capacitor

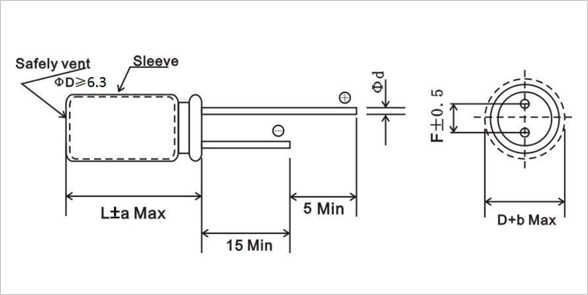

jb Capacitors manufactures and markets Radial Aluminum Electrolytic Capacitor with Miniaturized Size and wide Temperature. Following are JRC 2000H at 105°C, Radial Aluminum Electrolytic Capacitor features, specifications and dimensions. We supply high quality Radial Aluminum Electrolytic Capacitor to you.

Email sales@bec.co.uk or call +44 (0) 845 4900 40 for pricing and more information

Description

JRW – 2000H at 105°C, Radial Aluminum Electrolytic Capacitor Features

  • Load life of 2000 hours at 105°C
  • Extra Lower impedance at high frequency and high ripple current
  • RoHS Directive Compliant
Items Performance Characteristics
Operating Temperature Range (°C) -55℃~+105℃
Capacitance Tolerance (20°C, 120Hz) ±20%
Leakage Current (μA) I ≤ 0.01CV or 3 (μA) *Whichever is greater after 3 minutes
