JRD – 5000H at 105°C, Radial Aluminum Electrolytic Capacitor

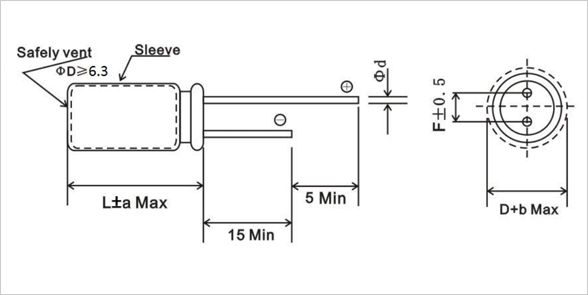

jb Capacitors manufactures and markets Radial Aluminum Electrolytic Capacitor with Miniaturized Size and wide Temperature. Following are JRD 2000H at 105°C, Radial Aluminum Electrolytic Capacitor features, specifications and dimensions. We supply high quality Radial Aluminum Electrolytic Capacitor to you.

Email sales@bec.co.uk or call +44 (0) 845 4900 40 for pricing and more information

Description

JRD – 5000H at 105°C, Radial Aluminum Electrolytic Capacitor Features

  • Load life of 5000 hours at 105°C
  • Low Impedance, Long Life
  • Excellent Ripple Current Capability
  • RoHS Directive Compliant
Items Performance Characteristics
Operating Temperature Range (°C) -55℃~+105℃
Capacitance Tolerance (25°C, 120Hz) ±20%
Leakage Current (μA) ≤0.02CV or 3uA, whichever is greate.(25°C, after 2 minute)
C: Nominal Capacitance (μF) V: Rated Voltage (V)
