JRA – 2000H at 85°C, Radial Aluminum Electrolytic Capacitor

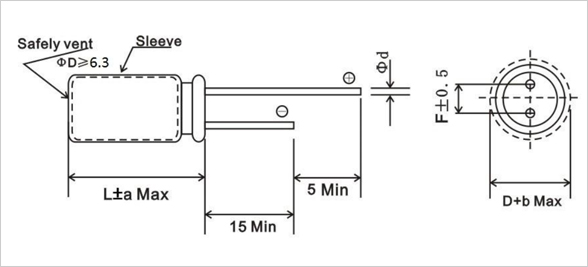

jb Capacitors manufactures and markets Radial Aluminum Electrolytic Capacitor with Miniaturized Size and wide Temperature. Following are JRA 2000H at 85°C, Radial Aluminum Electrolytic Capacitor features, specifications and dimensions. We supply high quality Radial Aluminum Electrolytic Capacitor to you.

Email sales@bec.co.uk or call +44 (0) 845 4900 40 for pricing and more information

Description

JRA – 2000H at 85°C, Radial Aluminum Electrolytic Capacitor Features

  • Load life of 2000 hours at 85°C
  • High ripple current
  • Miniature Series
  • RoHS Directive Compliant
Items Performance Characteristics
Operating Temperature Range (°C) -40℃~+85℃
Capacitance Tolerance (25°C, 120Hz) ±20%
Leakage Current (μA) 0.03cv or 4 whichever is greater(25°C, after 1 minute)
C: Nominal Capacitance (μF) V: Rated Voltage (V)
