JNJ – 3000H at 105°C, Miniaturized, Long Life Snap-in Aluminum Electrolytic Capacitor

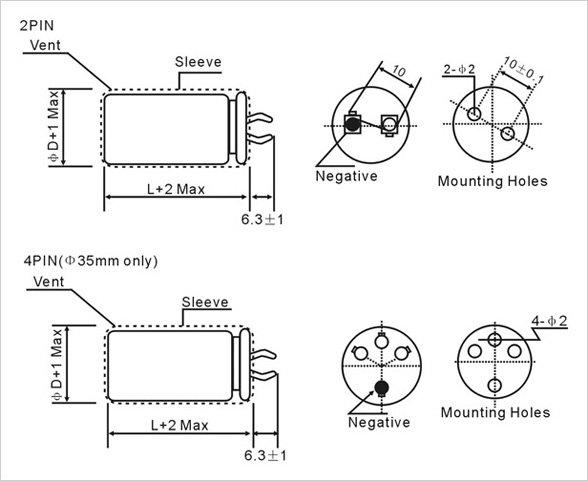

jb Capacitors manufactures and markets Snap-in Type Aluminum Electrolytic Capacitor with Miniaturi Size and Long Life. Following are 3000H at 105°C Long Life Aluminum Electrolytic Capacitor features, specifications and dimensions. We supply high quality Snap-in Type Long Life Aluminum Electrolytic Capacitor.

Spec Sheet

Email sales@bec.co.uk or call +44 (0) 1844 275824 for pricing and more information

SKU: JNJ Categories: ,

Description

JNJ – 3000H at 105°C, Miniaturized, Long Life Snap in Aluminum Electrolytic Capacitor Features

  • Load life of 3000 hours at 105°C, equal to 96000 hours (11 years) at 55°C
  • High ripple current
  • Smaller size
  • PCB Mounting
Items Performance Characteristics
Operating Temperature Range (°C) -40°C~+105°C (250V~400V:-25°C~+105°C)
Capacitance Tolerance (25°C, 120Hz) ±20%
Leakage Current (μA) 0.01CV or 1.5mA whichever is smaller. (25°C, after 5 minutes)
C: Nominal Capacitance (μF) V: Rated Voltage (V)
