JMN – Screw Aluminum Electrolytic Capacitor, 5000H at 85°C, Long Life

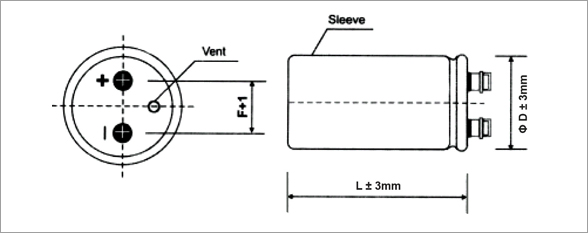

jb Capacitors manufactures and markets Screw Aluminum Electrolytic Capacitor, which is widely used for computers, communication powers, Hi-ripple circuit of electric vehicle, electric train, general-purpose inverter. Following are JMN series 5000H at 85°C Screw Aluminum Electrolytic Capacitor features, specifications and dimensions.

Email sales@bec.co.uk or call +44 (0) 1844 275824 for pricing and more information

Description

JMN – 5000H at 85°C Screw Aluminum Electrolytic Capacitor Features

  • Load life of 5000 hours at 85°C
  • Size may be selected
  • High ripple current
  • Used for computers, communication powers, Hi-ripple circuit of electric vehicle, electric train, general-purpose inverter
Items Performance Characteristics
Rated Voltage Range (V) 350V~450V
Operating Temperature Range (°C) –40°C~+85°C
Capacitance Tolerance (25°C,120Hz) ±20%
Leakage Current (μA) 0.01CV or 5mA, whichever is smaller. (at 25°C, after 5 minutes)
Where, C: Nominal capacitance (μF) V: Rated voltage (V)
Dissipation Factor (25°C, 120Hz) 0.15
