JMJ – Screw Aluminum Electrolytic Capacitor, 2000H at 85°C, General, Miniaturized

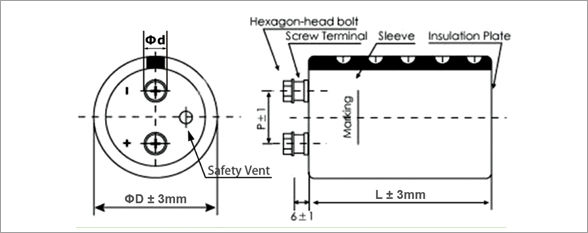

jb Capacitors manufactures and markets Screw Aluminum Electrolytic Capacitor with miniaturized size. Following are JMJ Screw Aluminum Electrolytic Capacitor features, specifications and dimensions. The series is used for computers, communication powers and inverters.

Email sales@bec.co.uk or call +44 (0) 845 4900 40 for pricing and more information

Description

JMJ – 2000H at 85°C, Miniaturized, Screw Aluminum Electrolytic Capacitor Features

  • Load life of 2000 hours at 85°C
  • Size may be selected
  • High ripple current
  • Used for computers, communication powers and inverters
Items Performance Characteristics
Operating Temperature Range (°C) -40°C~+85°C (315V, -25°C~+85°C)
Leakage Current (μA) 0.02CV or 5mA, whichever is smaller. (at 25°C, after 5 minutes)
C: Nominal capacitance (μF) V: Rated voltage (V)
Capacitance Tolerance (25°C,120Hz) ±20%
Dissipation Factor See Standard Ratings Table
