JLX – Luxury Aluminum Foil and Film Metallized Polypropylene Capacitors – Axial

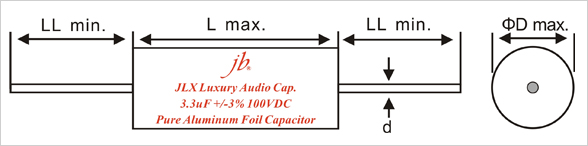

jb Capacitors manufactures JLX – Luxury Aluminum Foil and Film Metallized Polypropylene Capacitors – Axial type. This high quality Luxury Audio film capacitor provide perfect sound quality. jb Capacitors can sell low MOQ and competitive price. Following are Superior Metallized Polypropylene Film Capacitors features, specifications and drawing.

Spec Sheet

Email sales@bec.co.uk or call +44 (0) 1844 275824 for pricing and more information

SKU: JLX Categories: ,

Description

JLX – Luxury Aluminum Foil and Film Metallized Polypropylene Capacitors – Axial Features

  • Top of the range pure aluminum foil capacitor
  • High Precise Capacitance ±3%
  • Very Low Dielectric absorption factor
  • Very Low Dissipation factor
  • Very Low ESR
  • Very Low Inductance
  • A luxury capacitor designed especially for modern high-end tweeters and mid-range drivers
Passive flammability GB10191-88 IEC384-16
Operating temperature -55℃～+85℃
Capacitance range 1~10uF
Capacitance tolerance ±3%(E) 1KHz
Rated voltage 100V, 200V. DC
Withstand voltage 1.6VR 5S
Dissipation factor ≤0.0002 1KHz
Insulate the electric resistance CR≤0.33μF, I.R≥15,000MΩ
CR>0.33μF, I.R≥5,000S
Leads Diameter 1.0 Tinned Copper Wire
