JFZB – 310VAC X2 Metallized Polypropylene Film Capacitor For EMI Filters

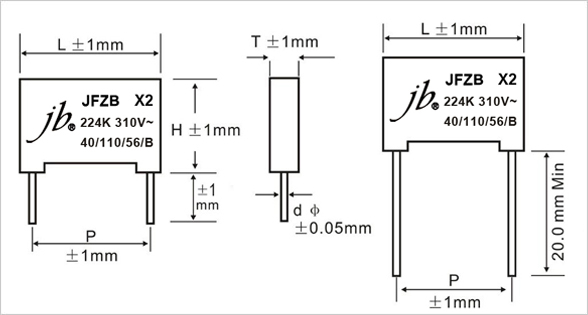

jb Capacitors manufactures X2 Metallized Polypropylene Film Capacitor, Widely use in across-the-line, inter-ference suprression circuit,etc. JFZB X2 series for EMI filters. Following are X2 Metallized Polypropylene Film Capacitor features, specifications and drawing.

Email sales@bec.co.uk or call +44 (0) 845 4900 40 for pricing and more information

SKU: JFZB Categories: ,

Description

JFZB – 310VAC X2 Metallized Polypropylene Film Capacitor For EMI Filters Features

  • Metallized polypropylene film, Non-inductive wound constructure
  • Good self-healing properties,withstanding surge voltage stressing
  • Good properties in damp environment
  • Long stability of capacitance
  • Excellent active and passive flame resistant abilities
  • Plastic case Flame retardant epoxy resin sealed(compliance with UL 94V-0)
  • Ammo Tape Pack, Cut leads, Long leads are available.
  • Fast sales response for cross, quotation.
Operating Temperature -40°C~ +110°C
Voltage Rating 310VAC
Capacitance Range 0.0022 ~ 2.2μF
Capacitance Tolerance std ±10% (K)
Insulation Resistance CR≤0.33μF, I.R≥15,000MΩ
CR>0.33μF, I.R≥5,000S , (20℃,100V,1min)
Dissipation Factor 0.0010μF≤CR≤0.47μF ≤0.1% (1KHz,20℃)
0.47μF≤CR≤1.0μF ≤0.2% (1KHz,20℃)
1.0μF≤CR≤10μF≤0.3% (1KHz,20℃)
Voltage Proof 2200V~2500V(2S)
