JFZ – X2 Metallized Polypropylene Film Capacitor (310VAC)

JFZA 310VAC X2 Metallized Polypropylene Film Capacitor For Capacitive Divider

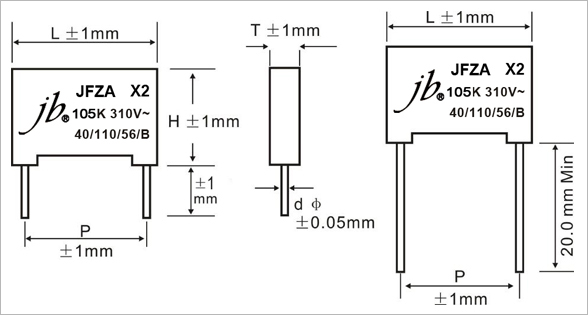

jb Capacitors manufactures X2 Metallized Polypropylene Film Capacitor, Suitable for applications in serial with the 100~240Vac mains, as energy meter, a small power LED driver module,small household electrical appliances control panel (electric kettle, electric cooker, coffee machine, hair straightener etc.), thermostat, replace the transformer.Widely used in LC resonant, high frequency high current situationFollowing are X2 Metallized Polypropylene Film Capacitor features, specifications and drawing.

Spec Sheet

Email sales@bec.co.uk or call +44 (0) 1844 275824 for pricing and more information

SKU: JFZA Categories: jb Capacitors, Plastic Film Capacitors

Description
Reviews (0)

Description

JFZA 310VAC X2 Metallized Polypropylene Film Capacitor For Capacitive Divider Features

Metallized polypropylene film, Non-inductive wound constructure
Good self-healing properties,withstanding surge voltage stressing
Good properties in damp environment
Long stability of capacitance
Excellent active and passive flame resistant abilities
Plastic case Flame retardant epoxy resin sealed(compliance with UL 94V-0)
Ammo Tape Pack, Cut leads, Long leads are available.
Fast sales response for cross, quotation.

Operating Temperature	-40°C~ +110°C
Voltage Rating	310VAC
Capacitance Range	0.0022 ~ 2.2μF
Capacitance Tolerance	std ±10% (K)
Insulation Resistance	C`R`≤0.33μF, I.R≥15,000MΩ C`R`>0.33μF, I.R≥5,000S , (20℃，100V,1min)
Dissipation Factor	0.0010μF≤C`R`≤0.47μF ≤0.1% (1KHz,20℃) 0.47μF≤C`R`≤1.0μF ≤0.2% (1KHz,20℃) 1.0μF≤C`R`≤10μF≤0.3% (1KHz,20℃)
Voltage Proof	4.3UR DC /5s
