JFZ – X2 Metallized Polypropylene Film Capacitor (310VAC)

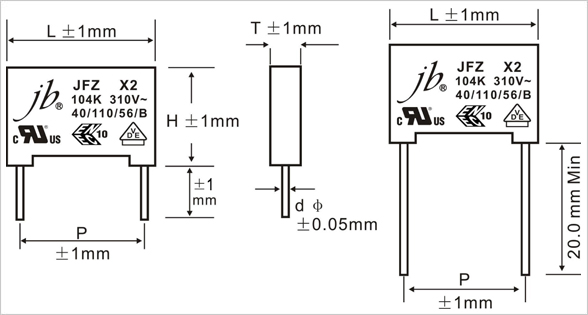

jb Capacitors manufactures X2 Metallized Polypropylene Film Capacitor, which also named Interference Suppression Capacitors or X2 Safety Capacitors, and we sell quite competitive prices. This X2 Safety Capacitor has 3 approval markings: VDE, ENEC and UL. Following are X2 Metallized Polypropylene Film Capacitor features, specifications and drawing.

Email sales@bec.co.uk or call +44 (0) 845 4900 40 for pricing and more information

SKU: JFZ Categories: ,


JFZ – X2 Metallized Polypropylene Film Capacitor (310VAC) Features

  • Non-inductive, (UL940V-0) plastic case sealed with epoxy resin.
  • Used in across-the-line,interference suppression circuit
  • Class X2 safety capacitors for 310VAC.
  • Provides interference suppression capacitor with VDE, ENEC and UL approvals.
  • Short delivery, some items have stock available.
  • High quality commitment, good prices support.
  • Ammo Tape Pack, Cut leads, Long leads are available.
  • Fast sales response for cross, quotation.


Operating Temperature -40°C~ +110°C
Voltage Rating 310VAC
Safety Approvals ENEC, VDE, UL,cUL.
Capacitance Range 0.0022 ~ 2.2μF
Capacitance Tolerance std ±10% (K)
Insulation Resistance CR≤0.33μF, I.R≥15,000MΩ
CR>0.33μF, I.R≥5,000S , (20℃,100V,1min)
Dissipation Factor 0.0010μF≤CR≤0.47μF ≤0.1% (1KHz,20℃)
0.47μF≤CR≤1.0μF ≤0.2% (1KHz,20℃)
1.0μF≤CR≤10μF≤0.3% (1KHz,20℃)
Voltage Proof 4.3UR DC /5s
