JFS – Motor Capacitor

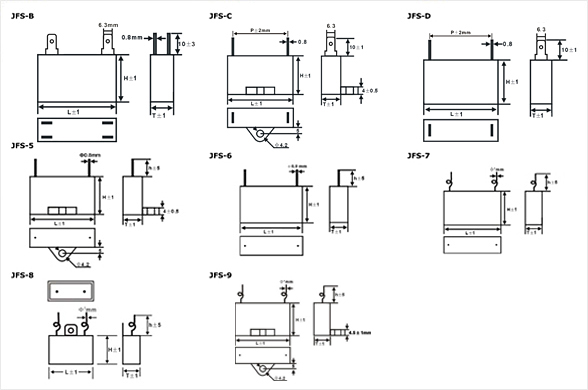

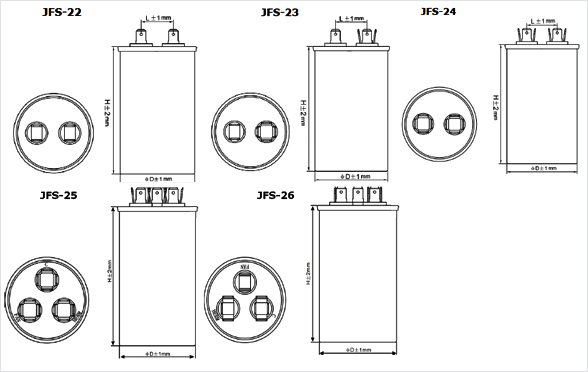

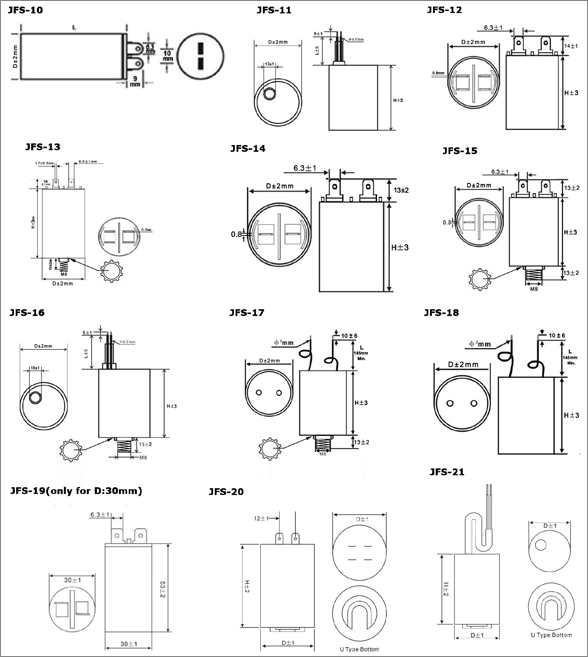

jb Capacitors manufactures Motor Capacitor, also called Motor Run Capacitors. Motor Capacitor is famous for low dissipation factor, lower temperature rise and high reliability and durability. We sell high quality and quite competitive prices for Motor Capacitors, and totally we have 25 different series of motor capacitors.jb CBB60 plastic case cylindrical JFS-10~21 capacitors with UL and cUL approvals. Following are Motor Capacitor features, specifications and drawing.

Email sales@bec.co.uk or call +44 (0) 845 4900 40 for pricing and more information

SKU: JFS Categories: ,

Description

JFS – Motor Capacitor Features

  • jb CBB60 plastic case cylindrical JFS-10~21 capacitors with UL and cUL approvals.
  • Electrical apparatue use metalized film with precisely quality control.
  • Low D.F. (dissipation factor), lower temperature rise.
  • High I.R. (insulation resistance) small size.
  • High safety &high reliability.
  • Durability and characteristics of frequency, etc.
Operating Condition -40℃~+85℃
Capacitance Range 1uF~20uF(JFS-B~D、JFS-5~7、JFS-9)
Capacitance Tolerance J(±5%)、K(±10%)
Rated Voltage 250V 450V (AC)
Withstand Voltage AC≥2UR 2S(lmax≤1.3 lnA)
Dissipation Factor ≤0.003 1KHz(JFS-A~D、JFS-5~7、JFS-9)
Insulation Resistance ≥3000S
Operating Condition -40℃~+85℃
Capacitance Range 1uF~100uF(JFS-10~21)
Capacitance Tolerance J(±5%)、K(±10%)
Rated Voltage 250V 450V (AC)
Withstand Voltage Test area,Test voltage
T-T,rated voltage, 2s
T-C,2400VAC(If all shell made of insulating materials, without any test in this project)
Withstand Voltage GB/T3667.1-2016, IEC/EN60252.1
Dissipation Factor ≤0.004 100Hz(JFS-10~21)
Insulation Resistance ≥3000S
Operating Condition -40℃~+85℃
Capacitance Range 2uF~100uF(JFS-22~26)
Capacitance Tolerance J(±5%)
Rated Voltage 370V 450V (AC)
Dissipation Factor ≤0.004 100Hz(JFS-22~26)
Withstand Voltage Between Terminals 2Un, 2s
Withstand Voltage Between Terminal And Case 2.2KV, 2s
