JFR – Radial & Axial Polystyrene Film Capacitor

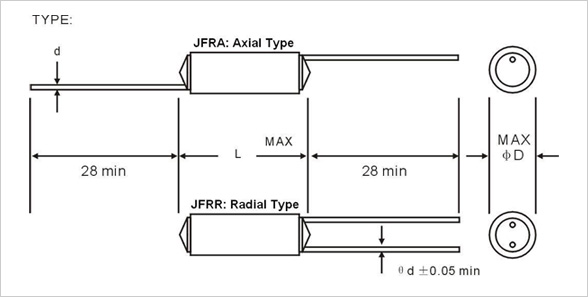

jb Capacitors manufactures Radial Polystyrene Film Capacitor &Axial Polystyrene Film Capacitor. Due to high precision of capacitance, Polystyrene Film Capacitor was widely used in instruments. Although Polystyrene Film Capacitor don’t have very large quantity requirement, we still keep in our production line and sell competitive prices. Following are Radial Polystyrene Film Capacitor & Axial Polystyrene Film Capacitor features, specifications and drawing.

Spec Sheet

Email sales@bec.co.uk or call +44 (0) 1844 275824 for pricing and more information

SKU: JFR Categories: ,

Description

JFR – Radial & Axial Polystyrene Film Capacitor Features

  • Inductive, Radial & Axial, welded lead style.
  • High stability of capacitance and DF versus temperature and frequency.
  • High precision of capacitance is available.
  • Low dissipation factor and high insulation resistance.
Operating Temperature -40°C~ +70°C
Rated Voltage 50V, 100V, 125V, 250V, 500V, 630V.DC
Capacitance Range 10pF ~ 0.01μF
Capacitance Tolerance ±1%, ±2%, ±2.5%, ±5%, ±10%
Insulation Resistance 100,000MΩ min at 25°C
Dissipation Factor C>330pF, DF<0.1%, Q>1000 at 1KHz
Temperature Coefficient N150±50 ppm/°C
