JFP – High Voltage Metallized Polypropylene Film Capacitor

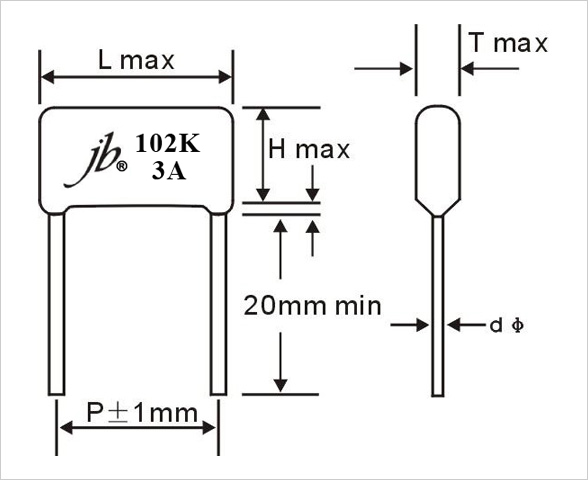

jb Capacitors manufactures High Voltage Metallized Polypropylene Film Capacitor with 1000V, 1250V, 1600V, 2000VDC. For High Voltage Film Capacitor, we have superiority in price. Following are High Voltage Metallized Polypropylene Film Capacitor features, specifications and drawing. We supply high quality High Voltage Metallized Polypropylene Film Capacitor.

Spec Sheet

Email sales@bec.co.uk or call +44 (0) 845 4900 40 for pricing and more information

SKU: JFP Categories: ,

Description

JFP – High Voltage Metallized Polypropylene Film Capacitor Features

  • Extended foil, flame retardant epoxy coated.
  • Ideal for high AC current applications, such as CRT deflection for R-F generators and pulse-forming networks.
  • Coated with flame retardative epoxy resin which provides from humidity and mechanical damage.
  • Temperature coefficient is negative and variety linear over the operation temperature.
Operating Temperature -40℃~ +85℃
Rated Voltage 1000V, 1250V, 1600V, 2000V.DC
Capacitance Range 0.001 ~ 0.15uF
Capacitance Tolerance ±5%, ±10%
Dissipation Factor ≤0.1% (20 , 10KHz)
Insulation Resistance ≥25000MΩ (CR≤0.1 μF)
≥2000s (CR>0.1 μF)
(20℃, 1min)
