JFLM Series – 5mm Mini Metallized Polypropylene Film Capacitor

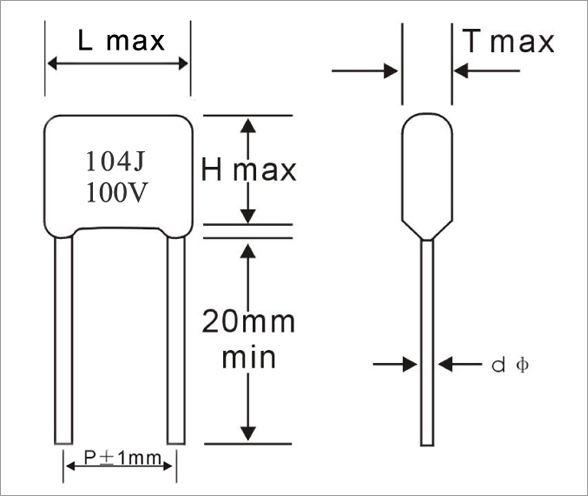

jb Capacitors manufactures Metallized Polypropylene Film Capacitor. JFLM series is the most common Polypropylene Capacitor, this series with epoxy coating, which have high reliability because of its excellent Self-Healing performance. jb Capacitors sell very competitive prices for Metallized Polypropylene Film Capacitor. Following are our Metallized Polypropylene Film Capacitor features, specifications and drawing.

Email sales@bec.co.uk or call +44 (0) 845 4900 40 for pricing and more information

SKU: JFLM Categories: ,

Description

JFLM – 5mm Mini Metallized Polypropylene Film Capacitor Features

  • Non-inductive, epoxy dip coated, high moisture resistance.
  • Dissipation factor is normally low and it is stable against high frequency and change of temperature.
  • Recommended for high-frequency circuits like s-curve compensating circuit.
  • High reliability because of its excellent Self-Healing performance.
Operating Temperature -40°C~ +85°C
Rated Voltage 100V(2A), 250V(2E), 400V(2G), 630V(2J).1000V(3A)
Capacitance Range 0.001 ~ 0.33μF
Capacitance Tolerance ±5%
Insulation Resistance UR>100V C≤0.33uF IR ≥25000MΩ,C>0.33uF IR ≥7500s
UR<100V C≤0.33uF IR ≥12500MΩ,C>0.33uF IR ≥3750s
Dissipation Factor ≤0.002 (at 1KHz) (typical 0.001 max)
