JFH – Subminiature Size Metallized Polyester Film Capacitors

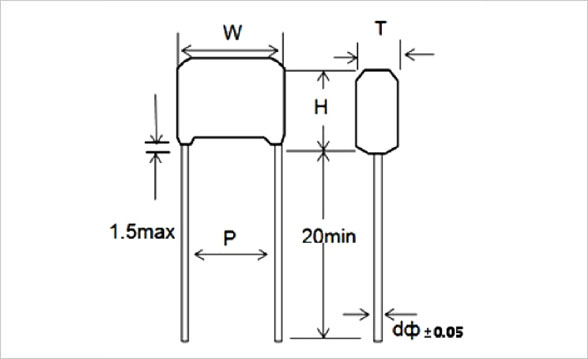

jb Capacitors manufactures Subminiature Size Metallized Polyester Film Capacitors JFH. JFH’s size is very small and has High performance and efficiency. Following are Subminiature size Metallized Polyester Film Capacitors features, specifications and drawing. We supply high quality Subminiature size Metallized Polyester Film Capacitors.

Spec Sheet

Email sales@bec.co.uk or call +44 (0) 1844 275824 for pricing and more information

SKU: JFH Categories: ,

Description

JFH – Subminiature Size Metallized Polyester Film Capacitors Features

  • Non-Inductive
  • Epoxy Dip Coated
  • Subminiature Size
  • RoHS directive compliant
Operating Temperature -55°C~ +85°C
Upper 85°C
Climatic Category 55/85/21
Rated Voltage 100VDC
Capacitance Range 0.001μF to 1.0μF
Capacitance Tolerance ±5%
Voltage Proof 1.4UR (5s)
Dissipation Factor ≦1% (20℃, 1KHz)
I.R. UR≦100V ≥15000MΩ ; CR≤0.33µF,≥5000s ; CR>0.33µF (20℃, 10V, 1 min)
UR>100V ≥15000MΩ ; CR≤0.33µF≥5000s ;
CR>0.33µF (20℃, 100V, 1 min).
