JFF – Mini Box Metallized Polyester Film Capacitor

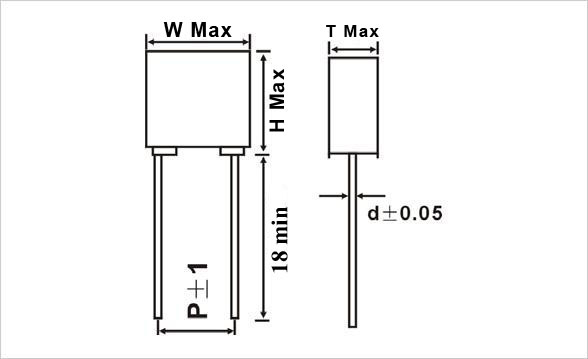

jb Capacitors manufactures Mini Box Metallized Polyester Film Capacitor. This series have price advantage and the small size can be compared favourably with the stacked Metallized Polyester Capacitor. Following are Mini Box Metallized Polyester Film Capacitor features, specifications and drawing.

jb JFF Series The Newest Mini Box MKT With 5mm Pitch!

Spec Sheet

Email sales@bec.co.uk or call +44 (0) 845 4900 40 for pricing and more information

SKU: JFF Categories: ,

Description

JFF – Mini Box Metallized Polyester Film Capacitor Features

  • Miniature size, Non-inductive metal structure
  • High temperature wax sealed, good insulation performance
  • Moisture-proof, flame retardant
  • Low dissipation factor.
  • Good self-healing effect, good stability and reliability.
  • Widely used in various DC and impulse circuits, such as communication equipments, radio, TV, VCD and other electronic equipments.
Operating Temperature 40/085/21
Rated Voltage 50/63/100V、250V、400V、630V.DC
Capacitance Range 0.001μF—2.2μF
Capacitance Tolerance ±5% (J) ,±10% (K)
Withstand voltage 1.6UR (5S)
Insulation Resistance C≤0.33μF ,IR≥3000MΩ ;

C>0.33μF, IR*C≥1000MΩ*UF (20°C, 1min)

Dissipation Factor ≤0.8% (20°C, 1KHz)
