JFD – Box Type Metallized Polyester Film Capacitor

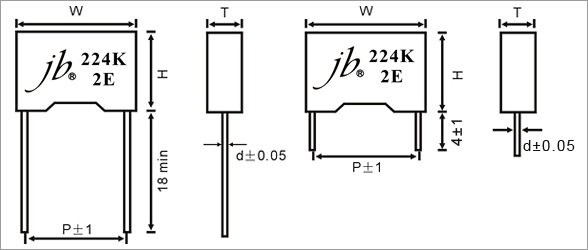

jb Capacitors manufactures and markets Box Type Metallized Polyester Film Capacitor. Box Type Metallized Polyester Film Capacitor is popular due to the identical outer appearance and high reliability. Following are Box Type Metallized Polyester Film Capacitor features, specifications and drawing.

Spec Sheet

Email sales@bec.co.uk or call +44 (0) 845 4900 40 for pricing and more information

SKU: JFD Categories: ,

Description

JFD – Box Type Metallized Polyester Film Capacitor Features

  • Non-inductive, plastic case and epoxy resin.
  • Box type provide the identical outer appearance.
  • High reliability.
Reference Standard GB7332 (IEC 60384-2)
Climatic Category 40/ 85/ 21
Rated Voltage 63V, 100V, 160V, 250V, 400V, 630V.DC
Capacitance Range 0.001 ~ 2.2μF
Capacitance Tolerance ±5%, ±10%, ±20%
Voltage Proof 1.6UR (5s)

Insulation Resistance

UR>100V ≥7,500MΩ, CR≤0.33μF
≥2,500s, CR>0.33μF
(20°C, 100V, 1min)
UR≤100V ≥3,750MΩ, CR≤0.33μF
≥1,250s, CR>0.33μF
(20°C, 10V, 1min)

Dissipation Factor

Frequency CR≤0.1μF
≤1.0%
CR>0.1μF
1KHz ≤1.0%
