JFB – CL21 Metallized Polyester Film Capacitor

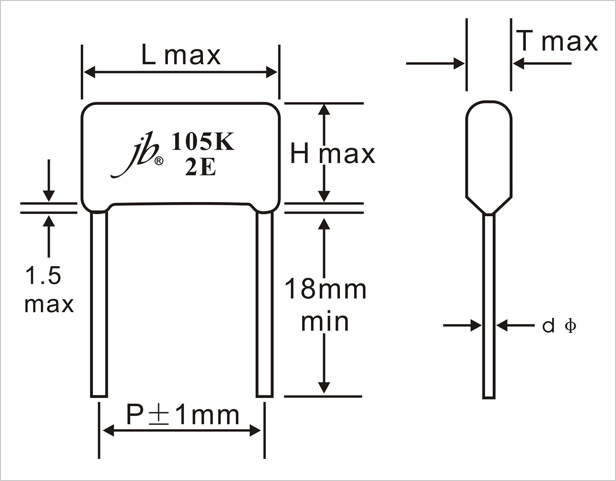

jb Capacitors produce Metallized Polyester Film Capacitor since 1980. Metallized Polyester Film Capacitor is one of the most common series of film capacitors, we sell high quality with very competitive prices in the market. Following are Metallized Polyester Film Capacitor features, specifications and drawing.

Spec Sheet

Email sales@bec.co.uk or call +44 (0) 845 4900 40 for pricing and more information

SKU: JFB Categories: ,

Description

JFB – Metallized Polyester Film Capacitor Features

  • Non-inductive, extended foil, dip coated, high moisture resistance.
  • Good reputation in use with filtering, DC blocking coupling and general communication equipment.
  • High reliable with its Self-Healing performance.
  • Coated with epoxy resin for superior heat resistance, humidity resistance and solvent resistance.
Operating Temperature -40°C~ +85°C
Rated Voltage DC 100V(2A), 250V(2E), 400V(2G), 630V(2J).
Capacitance Range 0.01 ~ 6.8μF
Capacitance Tolerance ±5%, ±10%, ±20%
Insulation Resistance UR≤100V C≤0.33uF ≥3750MΩ,C>0.33uF ≥1250MΩ
UR>100V C≤0.33uF ≥7500MΩ,C>0.33uF ≥2500MΩ
Dissipation Factor ≤0.01 (at 1KHz)
