JCS – 2000H at 85°C SMD Aluminum Electrolytic Capacitor

jb Capacitors manufactures and markets SMD Aluminum Electrolytic Capacitor. 2000 hours at 85°C Chip Aluminum Electrolytic Capacitor is one of the most common series. We sell quite good prices, high quality and with short lead time. Following are 85°C SMD Aluminum Electrolytic Capacitor features, specifications and drawing.

Email sales@bec.co.uk or call +44 (0) 845 4900 40 for pricing and more information

Description

JCS – 2000H at 85°C SMD Aluminum Electrolytic Capacitor Features

  • Designed for surface mounting on high density circuit board.
  • Emboss carrier tape packing system is available for automatic insertion.
Operating Temperature -40°C~ +85°C
Voltage Range 4V ~ 100V.DC
Capacitance Range 0.1 ~ 10000μF
Capacitance Tolerance ±20% at 120Hz, 20°C
Leakage Current Leakage current (Φ4~Φ10) ≤0.01CV or 3μA, whichever is greater.(after 2 minutes application of rated voltage)
Leakage current (Φ12.5~Φ16) ≤0.03CV or 4μA, whichever is greater.(after 1 minutes application of rated voltage)

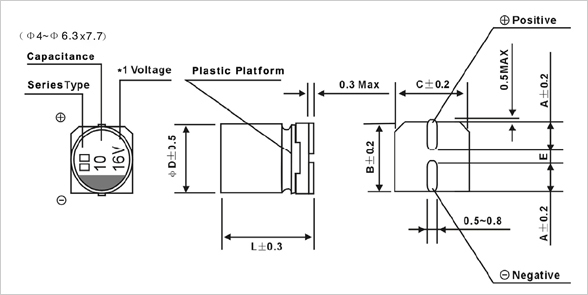

Φ4~Φ6.3×7.7

Φ8×10.5~Φ12.5
