JCL – 5000H at 105°C SMD Aluminum Electrolytic Capacitor

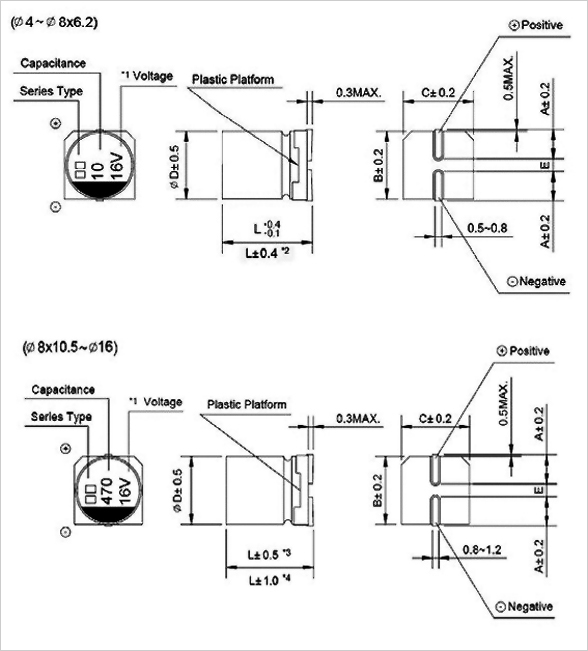

jb Capacitors manufactures SMD Aluminum Electrolytic Capacitor. JCL 5000H at 105°C Chip Aluminum Electrolytic Capacitor is one of the most common series, we sell quite good prices, high quality and with short lead time. Following are 105 °C SMD Aluminum Electrolytic Capacitor features, specifications and drawing.

Email sales@bec.co.uk or call +44 (0) 845 4900 40 for pricing and more information

Description

JCL – 5000H at 105°C SMD Aluminum Electrolytic Capacitor Features

  • Wide temperature range -55~+105°C.
  • Load life of 3000~5000 hours.
  • Comply with the RoHS directive.
Operating Temperature -55°C~+105°C
Voltage Range 6.3V~100V.DC
Capacitance Range 0.1 ~ 1500μF
Capacitance Tolerance ±20% at 120Hz, 20°C
Leakage Current Leakage current (Φ4~Φ10) ≤0.01CV or 3μA, whichever is greater (after 2 minutes application of rated voltage)Leakage current (Φ12.5~Φ16) ≤0.03CV or 4μA, whichever is greater (after 1 minutes application of rated voltage)
