JAE – 1000H 105°C, DF at Max 10% BP Axial Aluminum Electrolytic Capacitors for Audio System

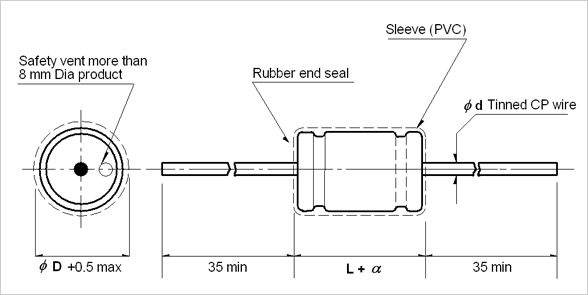

jb Capacitors manufactures and markets Radial Aluminum Electrolytic Capacitor with Miniaturized Size and wide Temperature. Following are JAE – 1000H 105°C, DF at Max 10% BP Axial Aluminum Electrolytic Capacitors for Audio System features, specifications and dimensions. We supply high quality Radial Aluminum Electrolytic Capacitor to you.

Spec Sheet

Email sales@bec.co.uk or call +44 (0) 1844 275824 for pricing and more information

SKU: JAE Categories: ,

Description

JAE – 1000H 105°C, DF at Max 10% BP Axial Aluminum Electrolytic Capacitors for Audio System Features

  • Bi-Polarized
  • 105℃ 1000 hours
  • Low Dissipation Factor MAX 10% at 1KHz
  • Specially produced for Cross-Over Networks with high fidelity audio system
  • High-quality crossover non-polar aluminum electrolytic capacitors
  • Product mainly used: Audio Converters and Dividers (partials), Audio amp, Automotive Electronics Products, speaker and so on
Items Performance Characteristics
Operating Temperature Range (°C) -40℃~+105℃
Capacitance Tolerance ±10%
Leakage Current (μA) MAX. 0.03CV + 3μA After 5 minutes application of rated working voltage
MAX Dissipation Factor MAX 10% at 1KHz
